ACCEPTANCE RATE
• 98% or more
PROCESSING SPEED*
• UBA Pro2-BNF with XL Cassette: approx. 1.3 sec /
note
• UBA Pro2-BNF with XL Cassette and Safe Interface:
approx. 1.5 sec / note
• UBA Pro2-BNF-LD: approx. 1.2 sec / note
*Under the following operational conditions:
(1) Power Supply DC24.0V±1%
(2) Temperatur 23 ± 3°C
(3) Humiditry 40% ~ 65% RH
(4) Banknote USD
Depending on the installation environment and the
number of operation cycles, the product may not be
able to fulfill the original specifications
BANKNOTE SIZE
• Length: 120 – 165mm; Width: 62 – 77mm
BANKNOTE INSERTION DIRECTION
• 4 ways
DIMENSIONS & WEIGHT

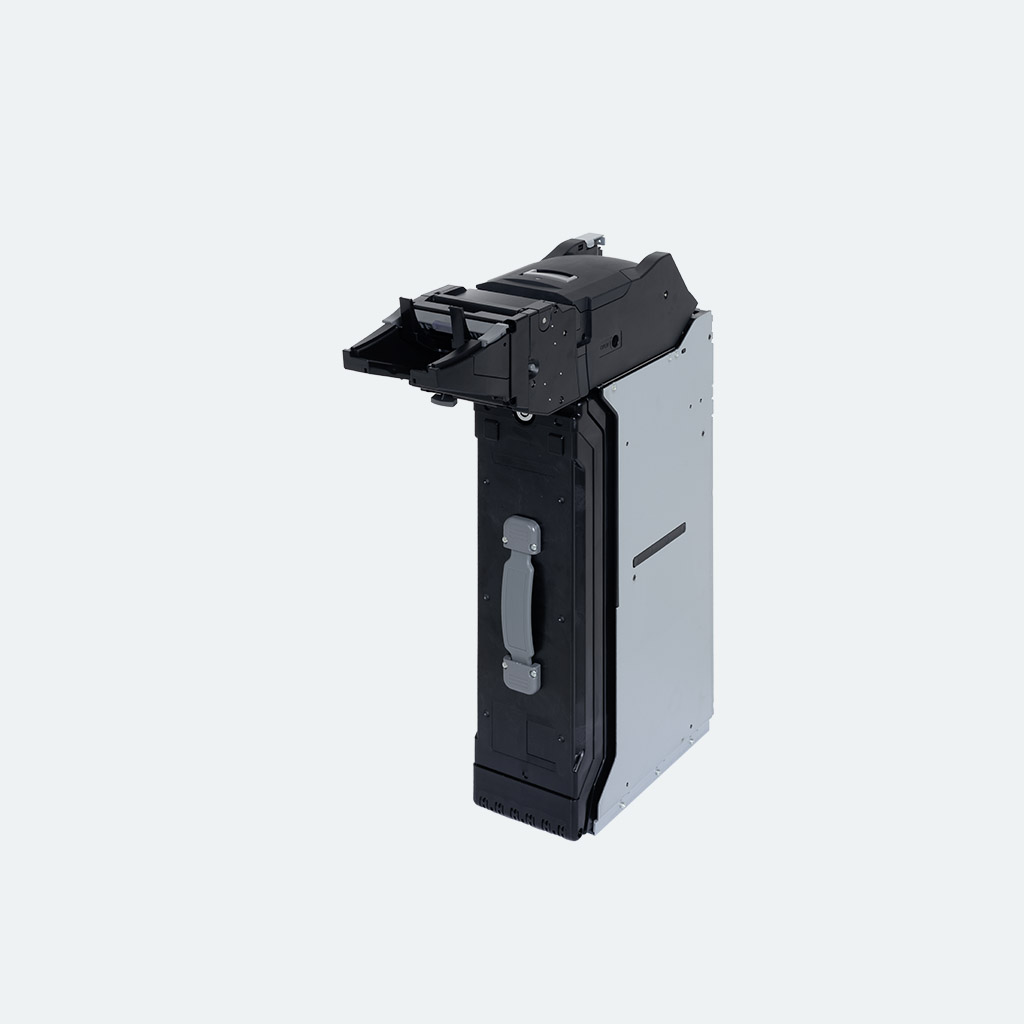

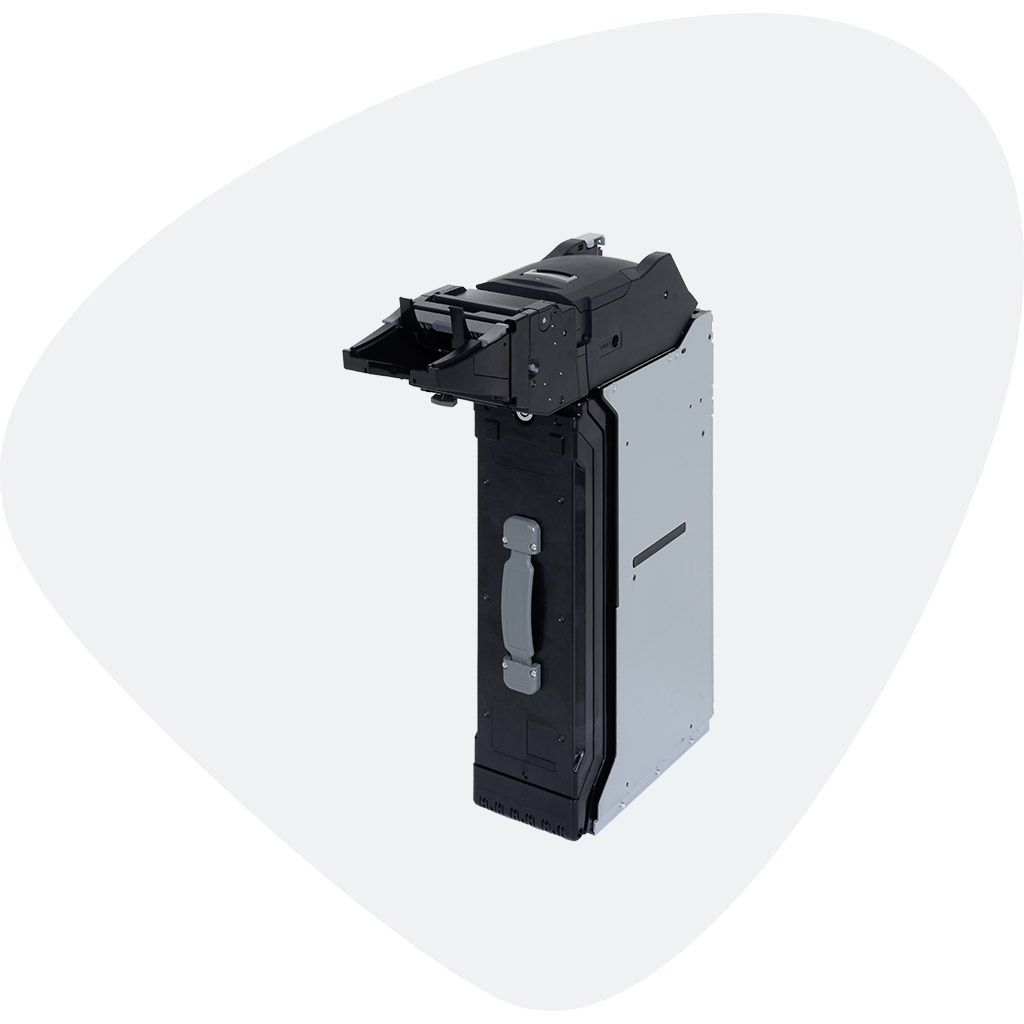

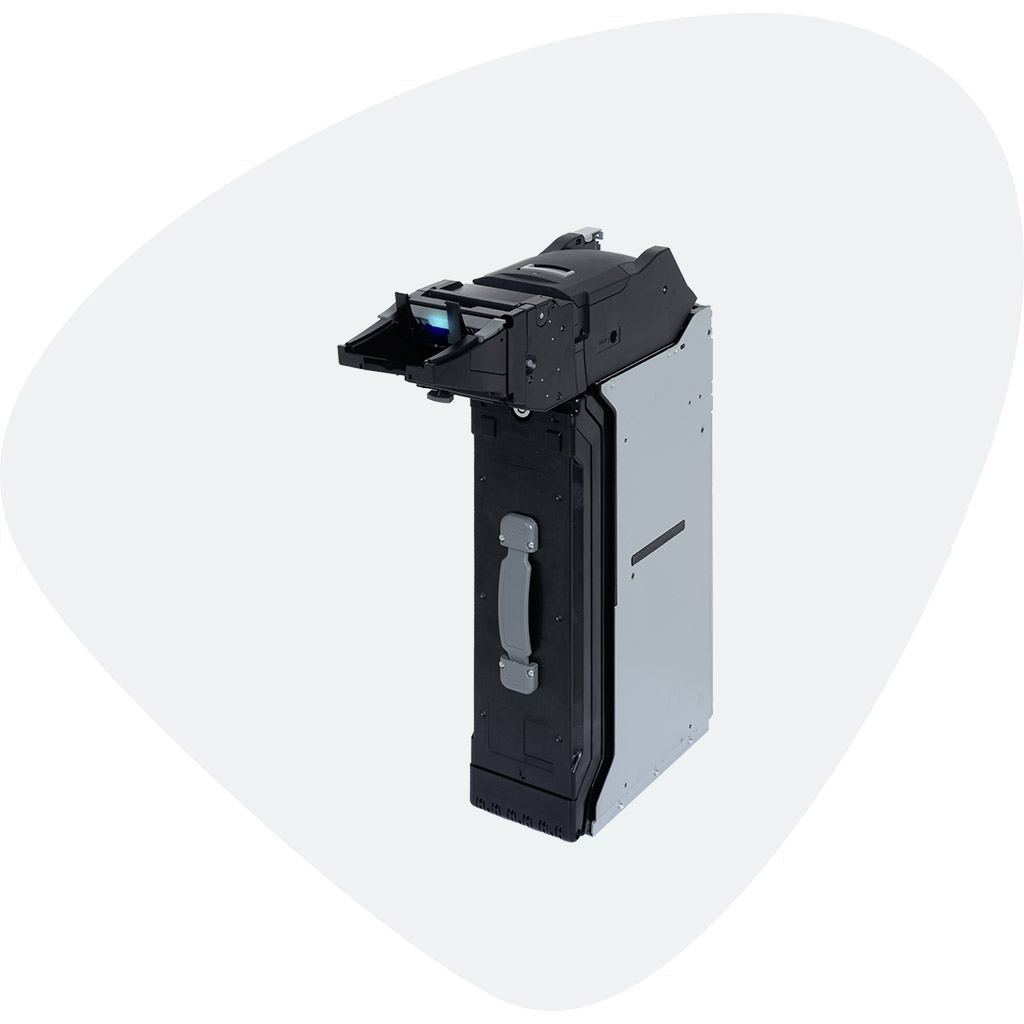

UBA Pro2 BNF-XL
• Outline Dimensions:
W124.0 x H527.1 x D426.7 (mm)
• Weight: Approx. 8.8kg

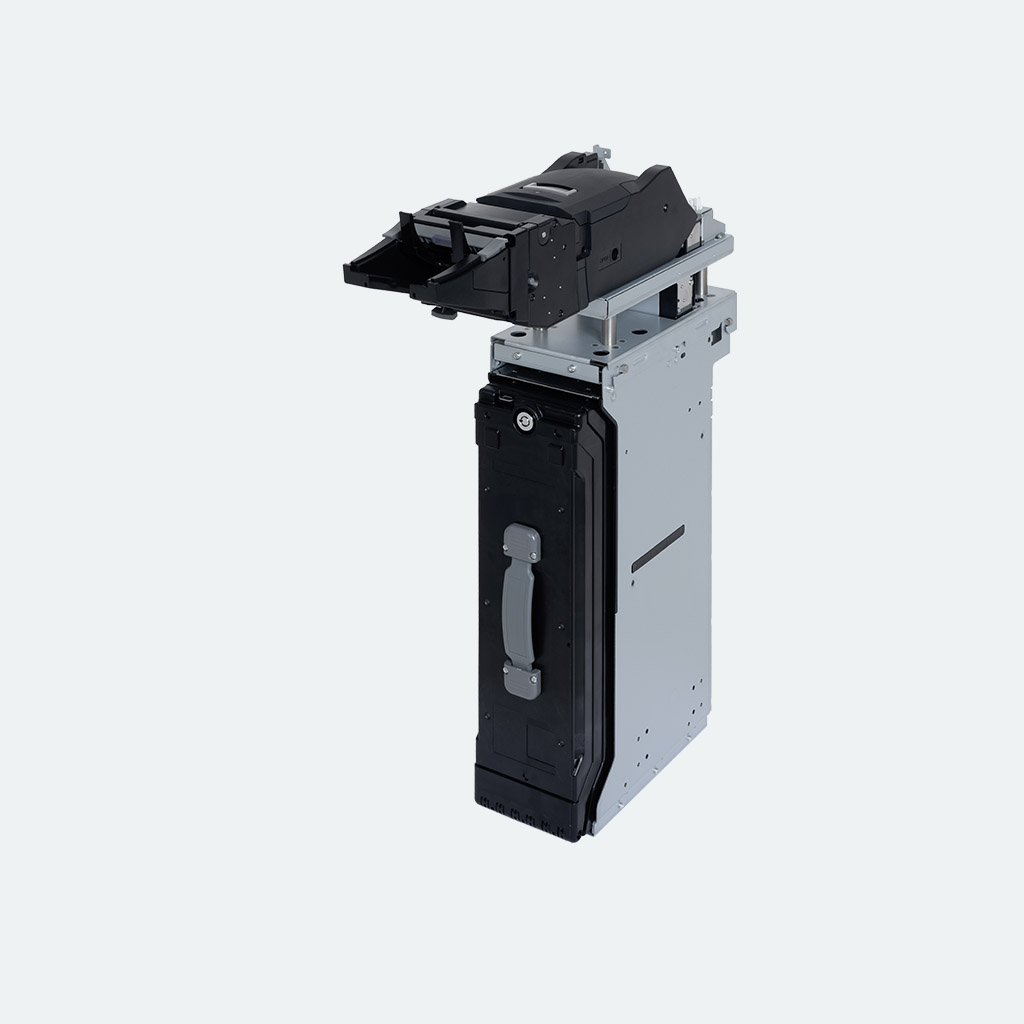

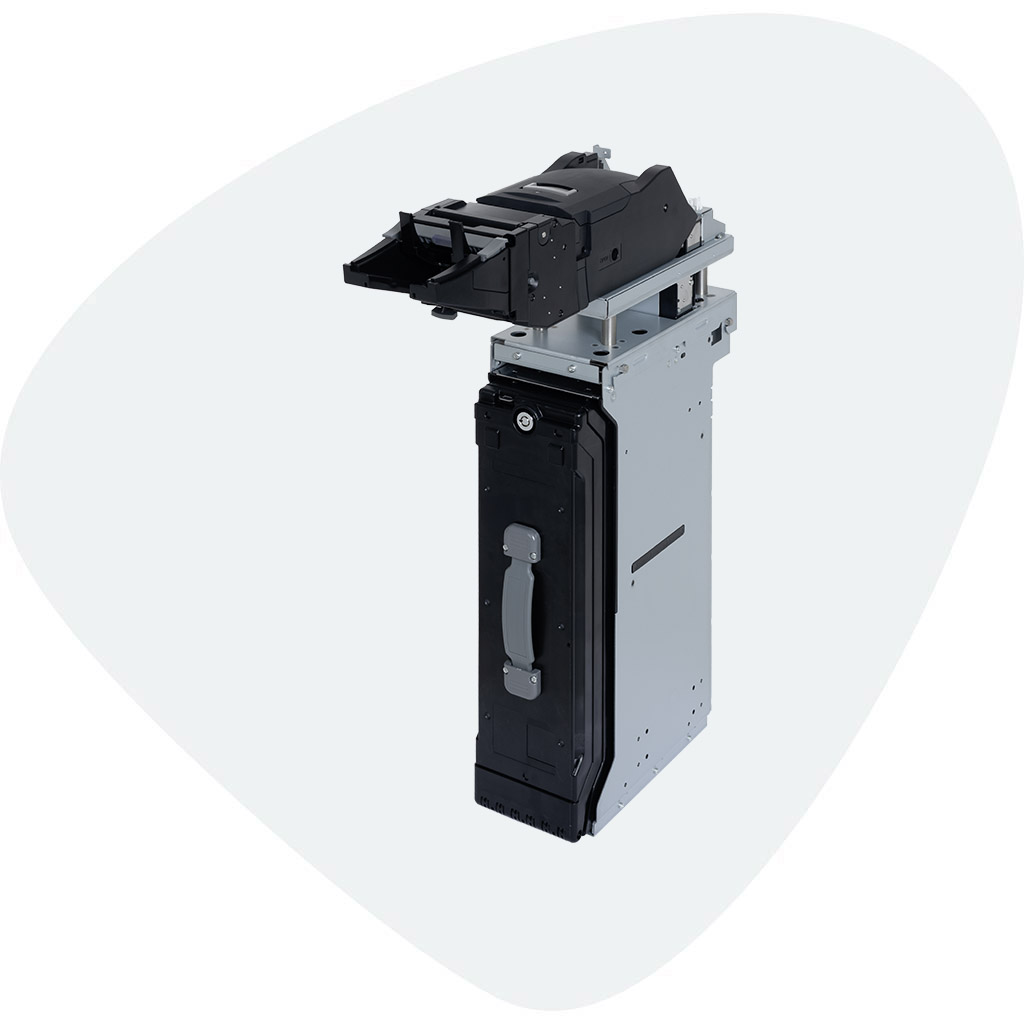

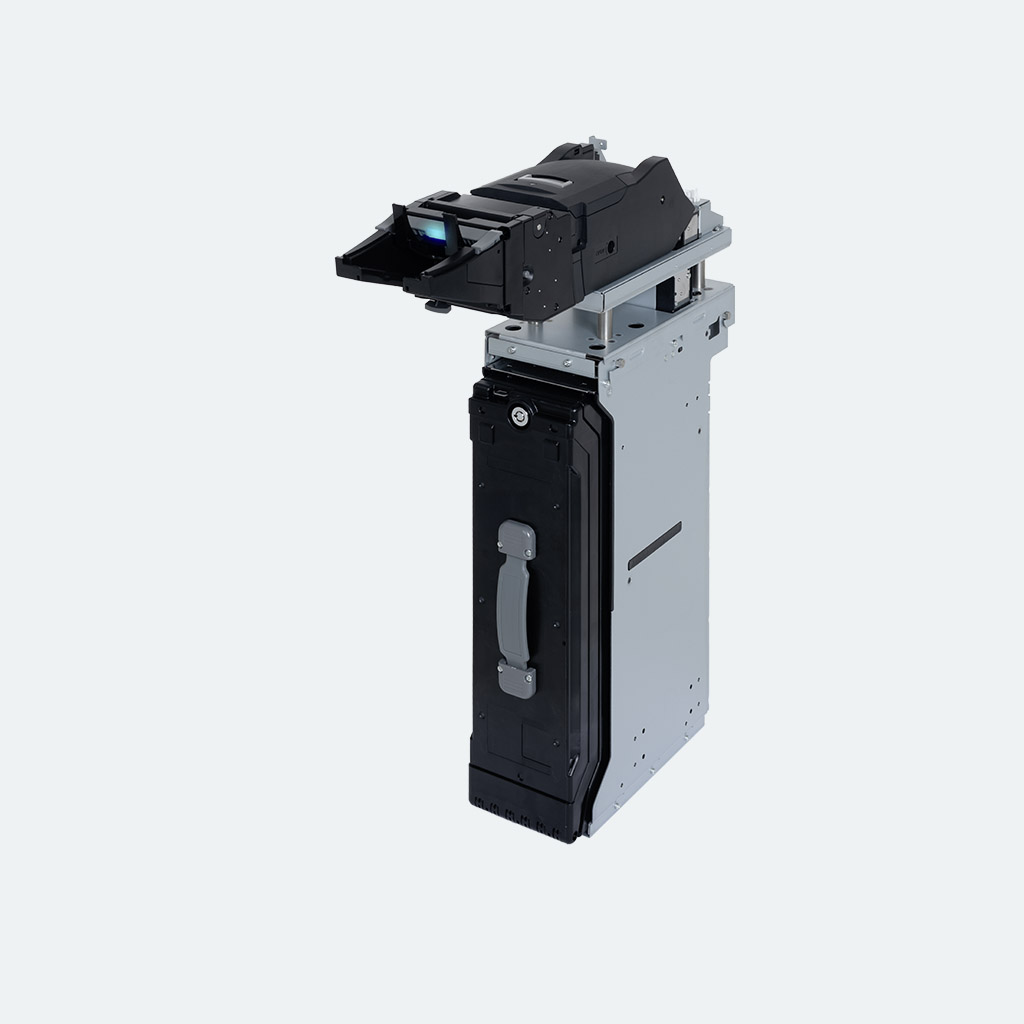

UBA Pro2 BNF-SI
• Outline Dimensions:
W136.0mm x H620.3mm x D471.8mm (mm)
• Weight: Approx. 11.4kg

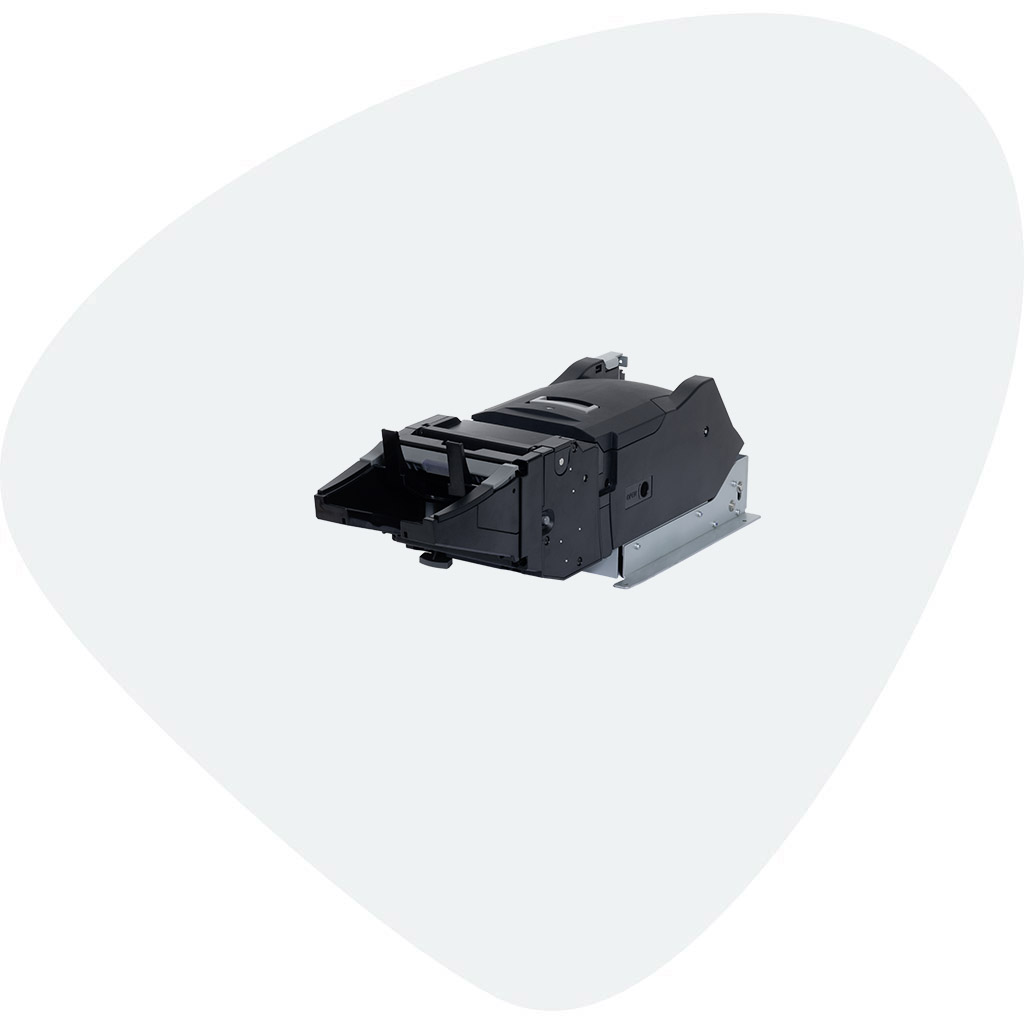

UBA Pro2 BNF-LD
• Outline Dimensions:
W144.0mm x H139.2mm x D414.3mm (mm)
• Weight: Approx. 3.1kg

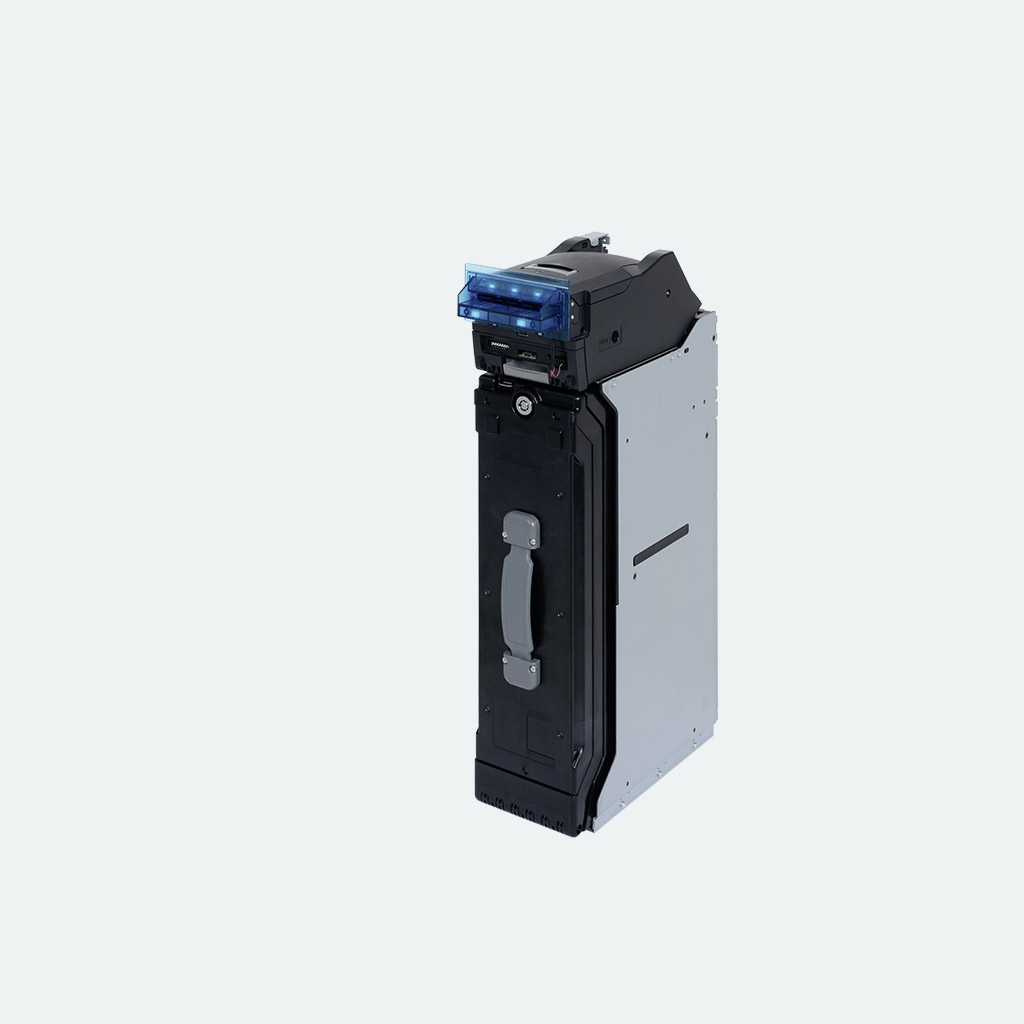

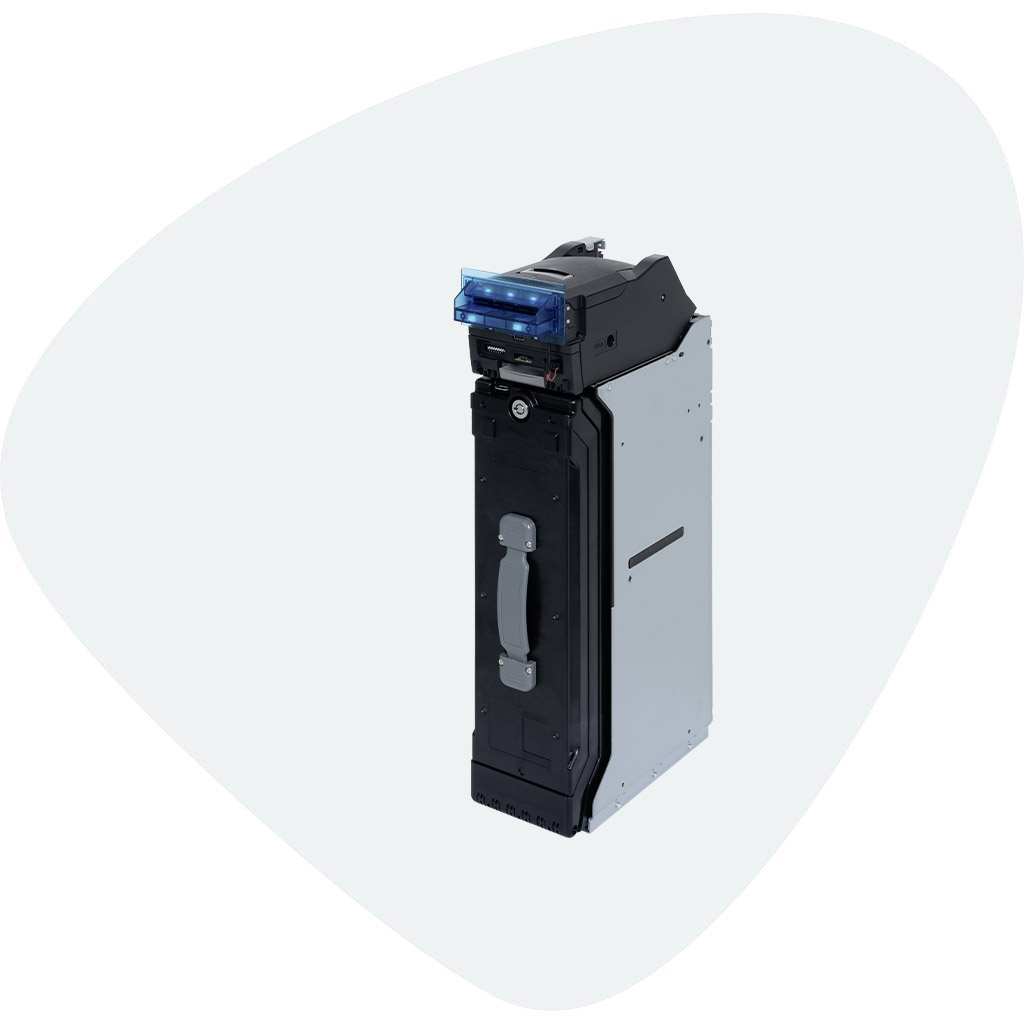

UBA Pro2 SNF-XL
• Outline Dimensions:
W124.0mm x H517.1 x D293.7 (mm)
• Approx. 8.0kg
CASH BOX TYPE
• XL Box with RFID
CASH BOX CAPACITY
• 2.500 Notes
BARCODE ACCEPTANCE
• Not supported
INTERFACE
• USB (USB Specification Rev. 2.0 Compliance)
• Photo-Coupler Isolation, RS232C
POWER CONSUMPTION
• 24VDC +/+ 5%
